Manage your first data

Before identifying a model of the dynamic system, it is necessary to store the data of the dynamic system on the database. In this tutorial you will learn:

• Load data
• Input-output data
• Delete data

Load data

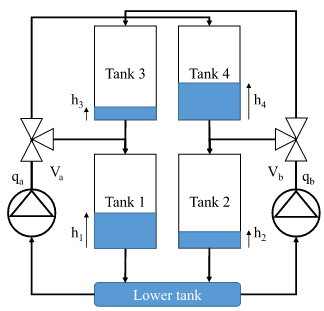

AutomationLabs can load CSV file to store the data on database and carry out processing on the data. Also, the data will allow the identification of a model. For a quick start, we will use in this example the data from the article [1]. The data can be downloaded on the quadruple tank process repository. The dynamical system has four tanks, two pumps and two three-way valves.

Launch the AutomationLabs:

julia> using AutomationLabs

You can create a new project, because the data, the models, the controllers and the plots are located on a project:

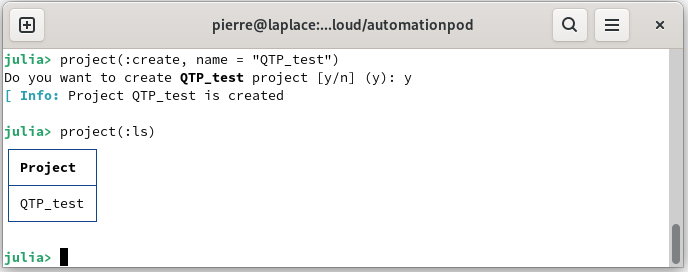

julia> project(:create, name = "QTP_test")

You can also, list all the project that are available on the database:

julia> project(:ls)

The inputs of the dynamical system are added to the database:

julia>  data(
          :add;
          project_name = "QTP_test",
          path = "path_of_the_CSV_file",
          name = "data_inputs_m3h",
       )

The outputs of the dynamical system are added to the database:

julia> data(
          :add;
          project_name = "QTP_test",
          path = "path_of_the_CSV_file",
          name = "data_outputs",
       )

You can list the raw data that are available on the database, such as:

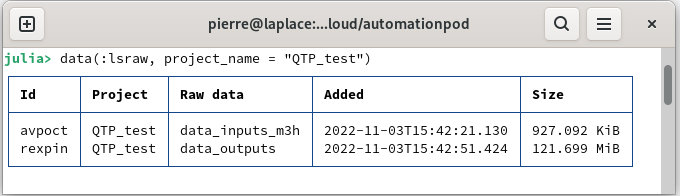

julia> data(:lsraw, project_name = "QTP_test")

Finally, it is possible to plot the raw data that you have added on the database with the dash command:

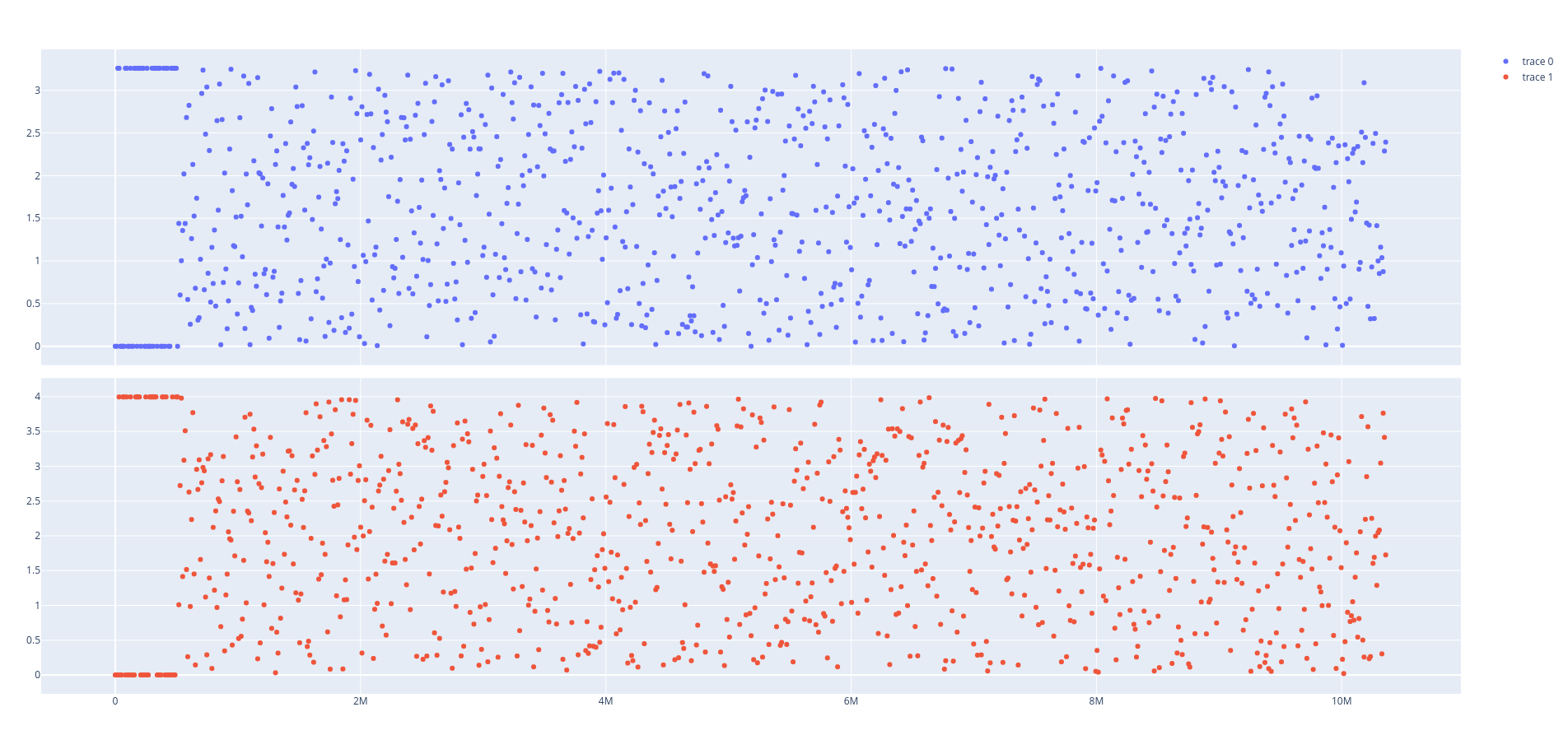

julia> dash(:rawdata,
                project_name = "QTP_test",
                data_name = "data_inputs_m3h",
                recipe = "temporal",
                dash_name = "inputs_plot",
                )

Input-output data

In order to perform a model identification, the data need to be formatted. As such the io data is introduced:

julia> data(:io,
              inputs_data_name =  "data_inputs_m3h",
              outputs_data_name = "data_outputs",
              project_name = "QTP_test",
              data_name = "io1",
    )

where :io is the input-output information, inputs_data_name is the raw data of the dynamical system inputs, outputs_data_name is the raw data of the dynamical system outputs, project_name is the project where the raw are located and where the io data will be located, data_name is the name of the io data. There are additional parameters that allow the data to be processed. For example, it is possible to set a low or high limit on the data, more information can be found in the guides section:

Interact with data

You can list all the io data available on a project:

julia> data(:lsio, project_name = "QTP_test")

It is possible to plot the io data that you have processed with the dash command:

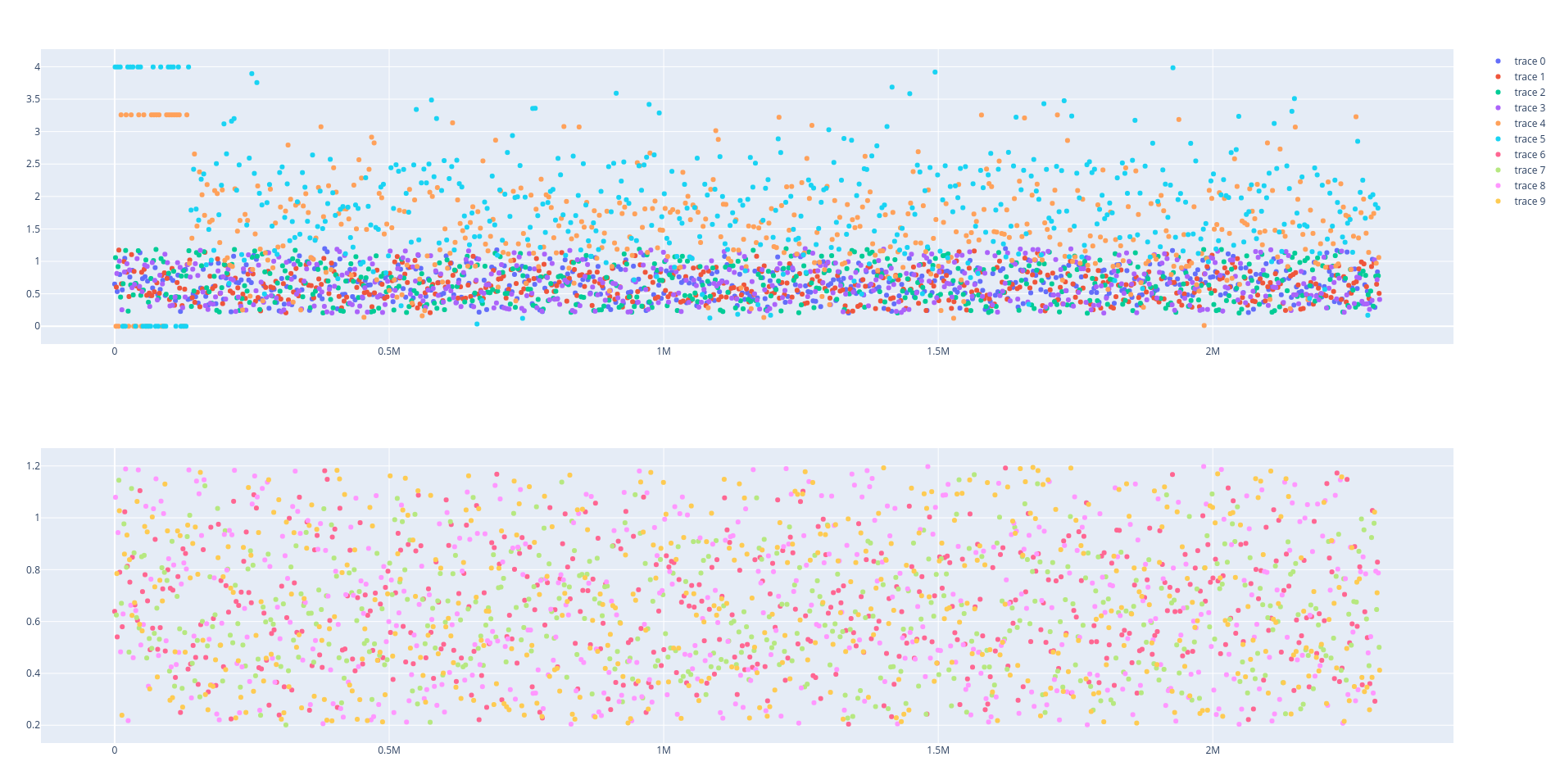

julia> dash(:iodata,
                project_name = "QTP_test",
                data_name = "io1",
                recipe = "temporal",
                dash_name = "io_plot",
        )

Delete data

It is possible to delete the data, such as:

julia> data(:rmio, project_name = "QTP_test", data_name = "io1")

julia> model(:rmraw, project_name = "QTP_test", data_name = "data_outputs")

julia> model(:rmraw, project_name = "QTP_test", data_name = "data_intputs_m3h")

Reference

[1] Blaud, P. C., Chevrel, P., Claveau, F., Haurant, P., & Mouraud, A. (2022). ResNet and PolyNet based identification and (MPC) control of dynamical systems: a promising way. IEEE Access.
